Tray Sealer

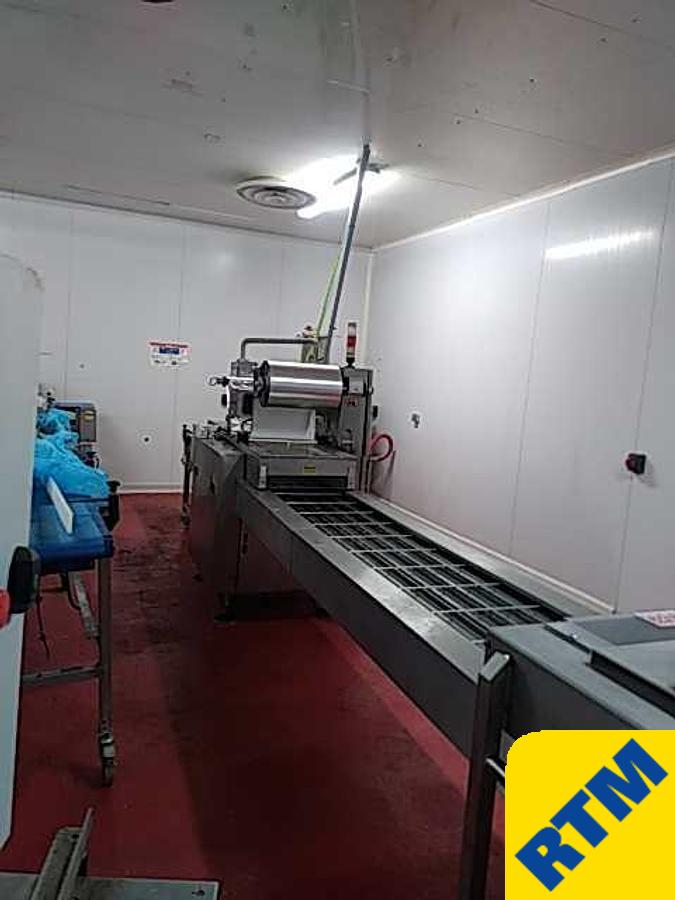

Item # 9396 - AUTOMATIC TRAY SEALER

Manufactured by MECAPACK

Model Meca 2003 VG Inox

Year 2003

Completely refurbished & updated in 2017 by SODIMA Company

3m loading conveyor extension equipped with a variable speed drive and 1 emergency stop button (SODIMA)

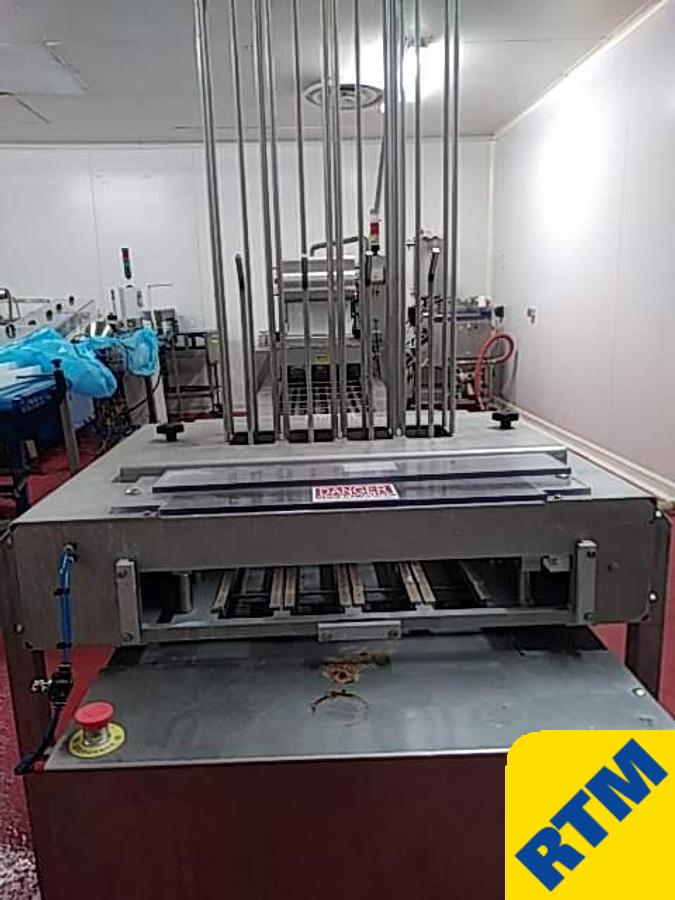

Tray denester with 1 magazine, 4-lane setup (SODIMA)

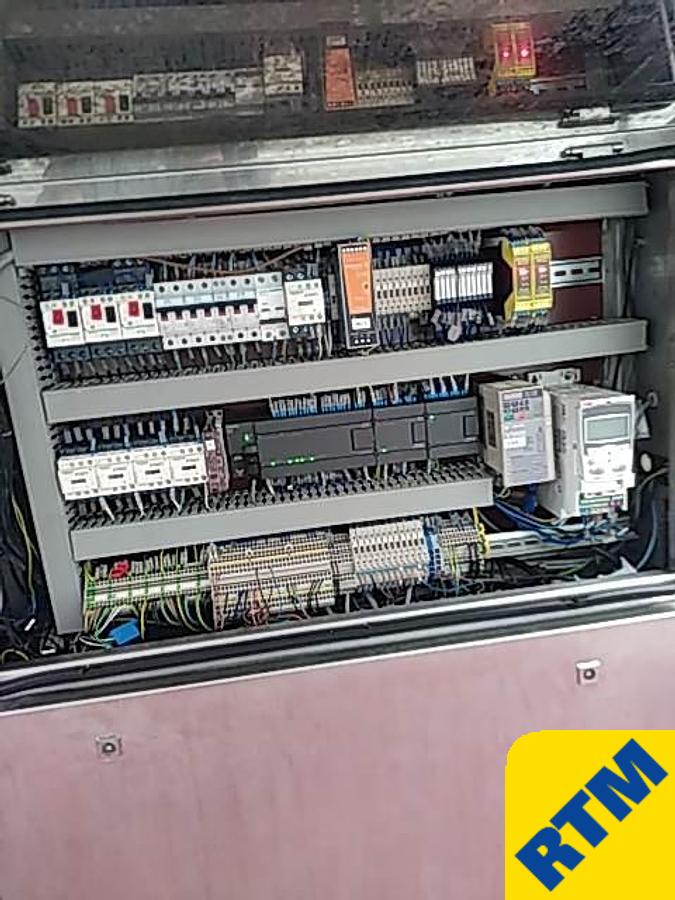

Siemens automation system with touchscreen (SODIMA)

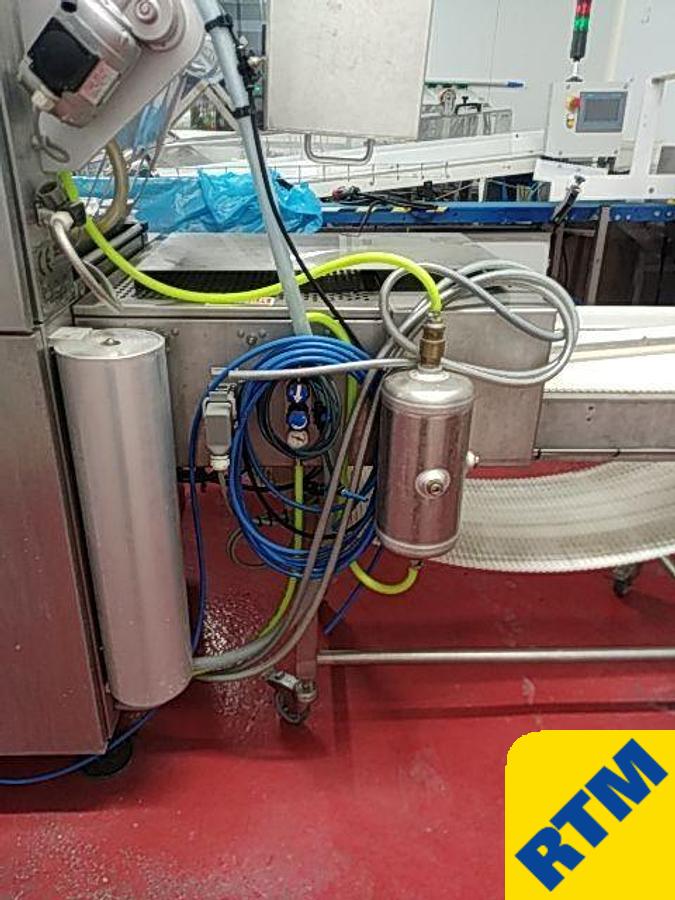

160 m³/h vacuum pump (SODIMA)

4-to-1 lane merging system for batch code printing (SODIMA)

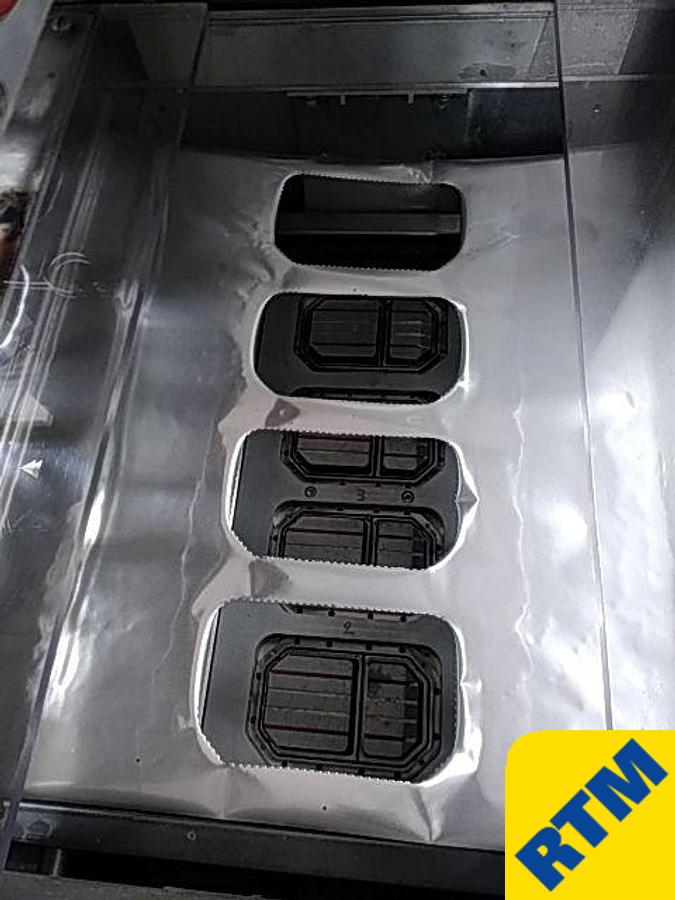

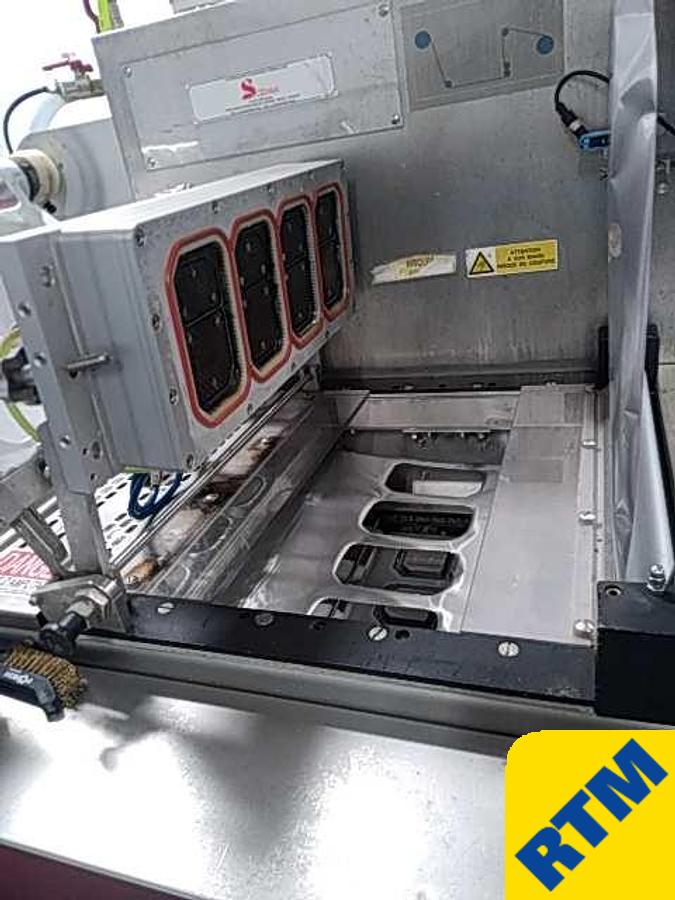

1 set of 4-lane tooling sized for the trays (SODIMA)

Products: 120 x 76 mm dual-compartment PP tray – fruit puree / biscuit

Tray depths from 20 to 80mms

Film width: 470 mm

Cut pitch: 154 mm

Machine core diameter: 76 mm

Around 10-12 cycles per minute

Line speed: 40 trays/minute (i.e., 2,400 trays/hour)

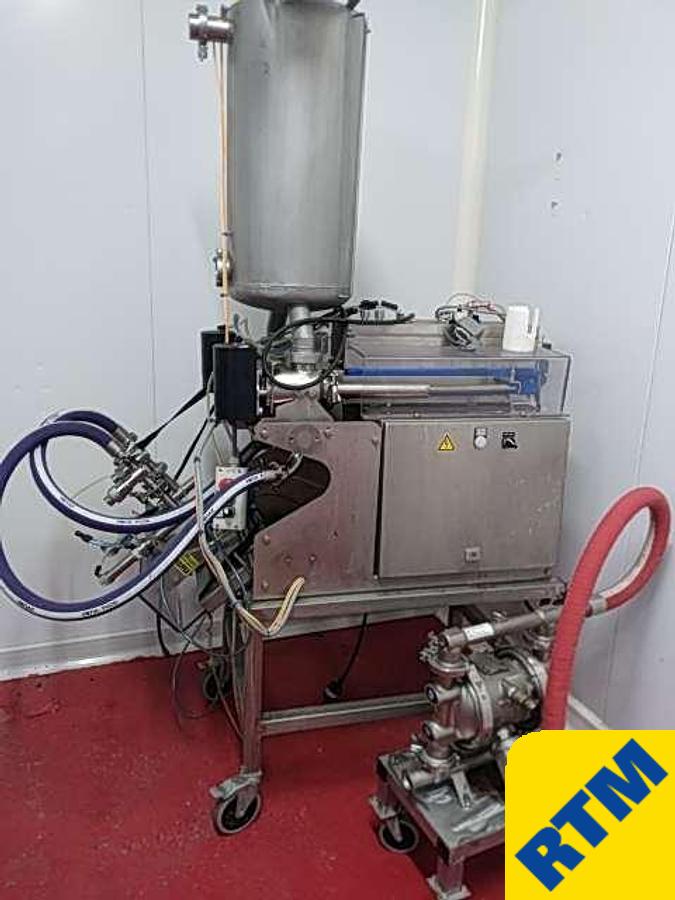

Also including a FILLPACK Dual Dosing Unit

Two Dosing Units, each up to 300cc

Year 2017,

Fruit pieces in compote for dosing unit 170605. Size: 5x5 mm or 10x10 mm (max.)
