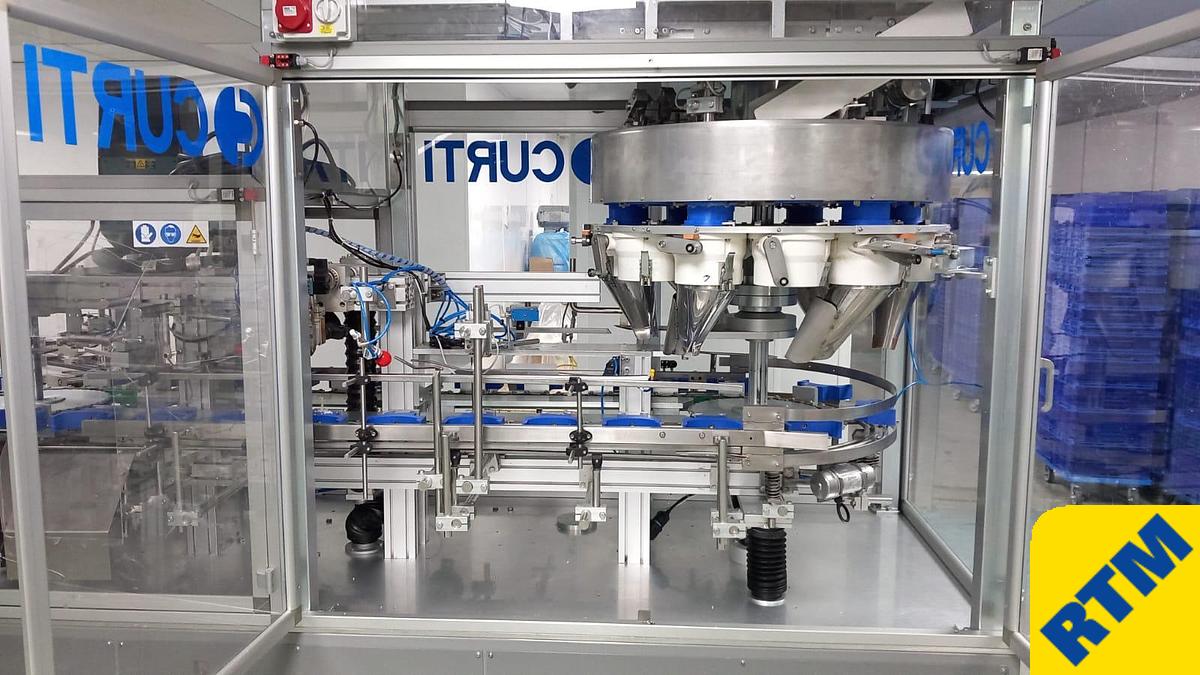

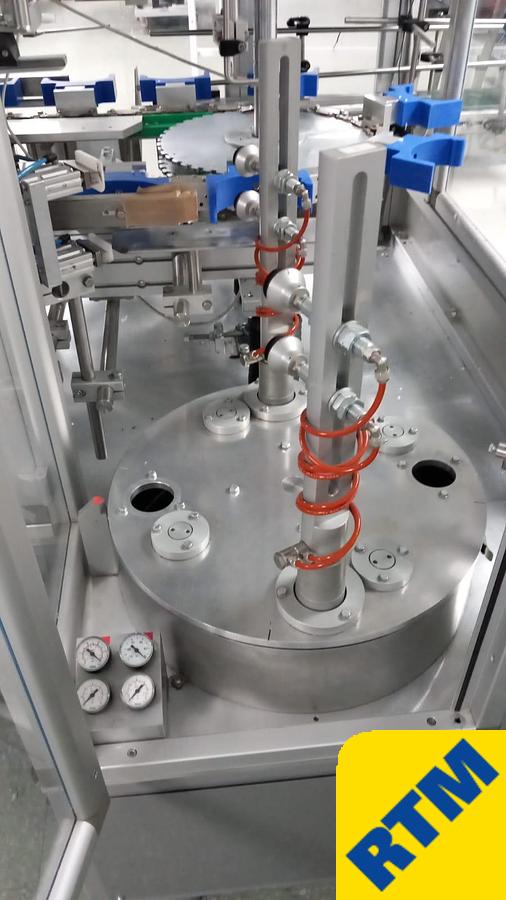

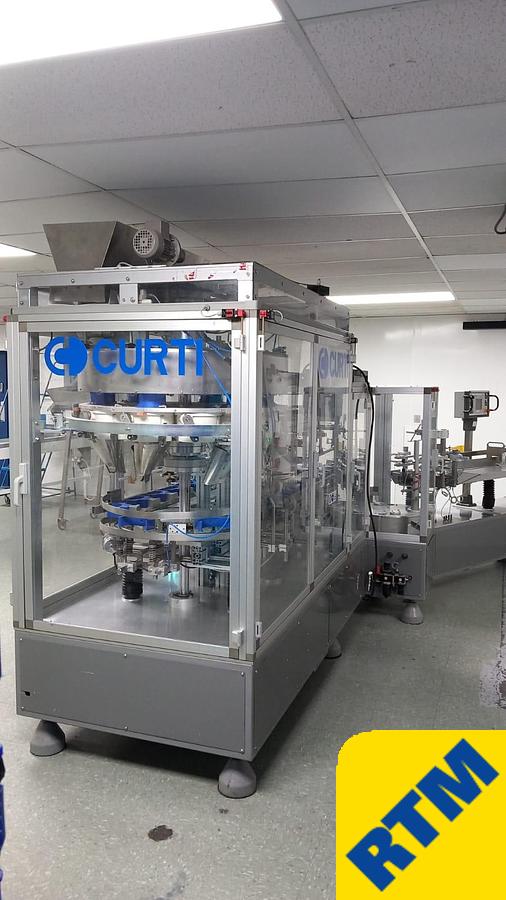

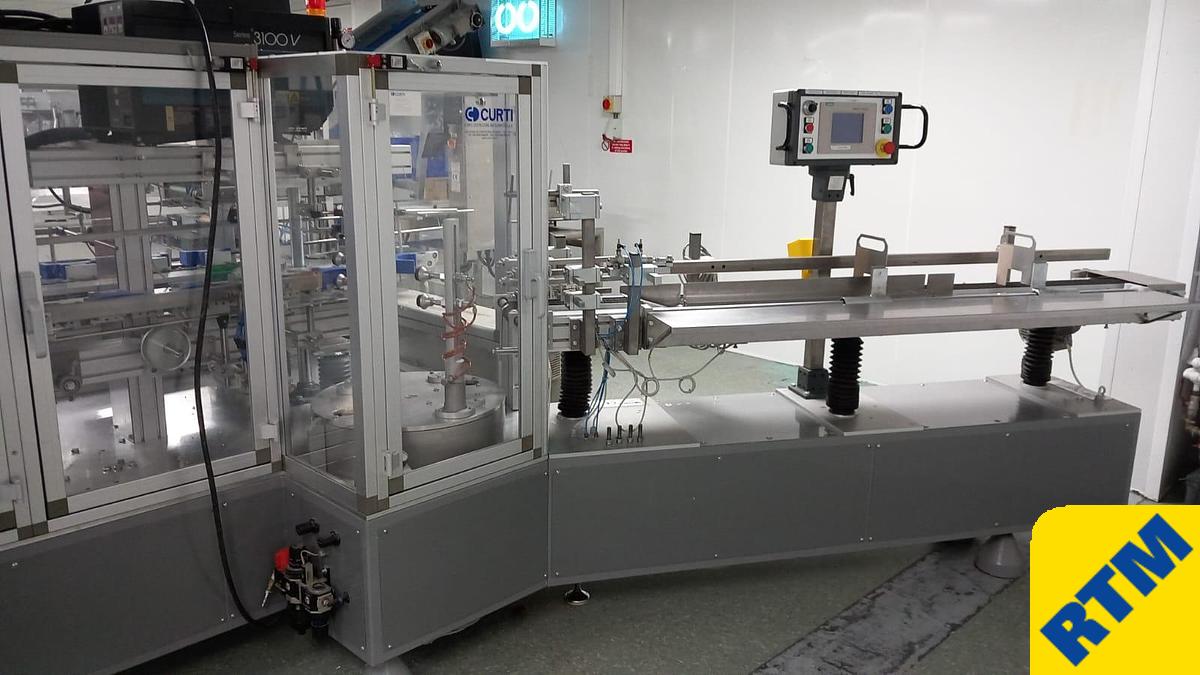

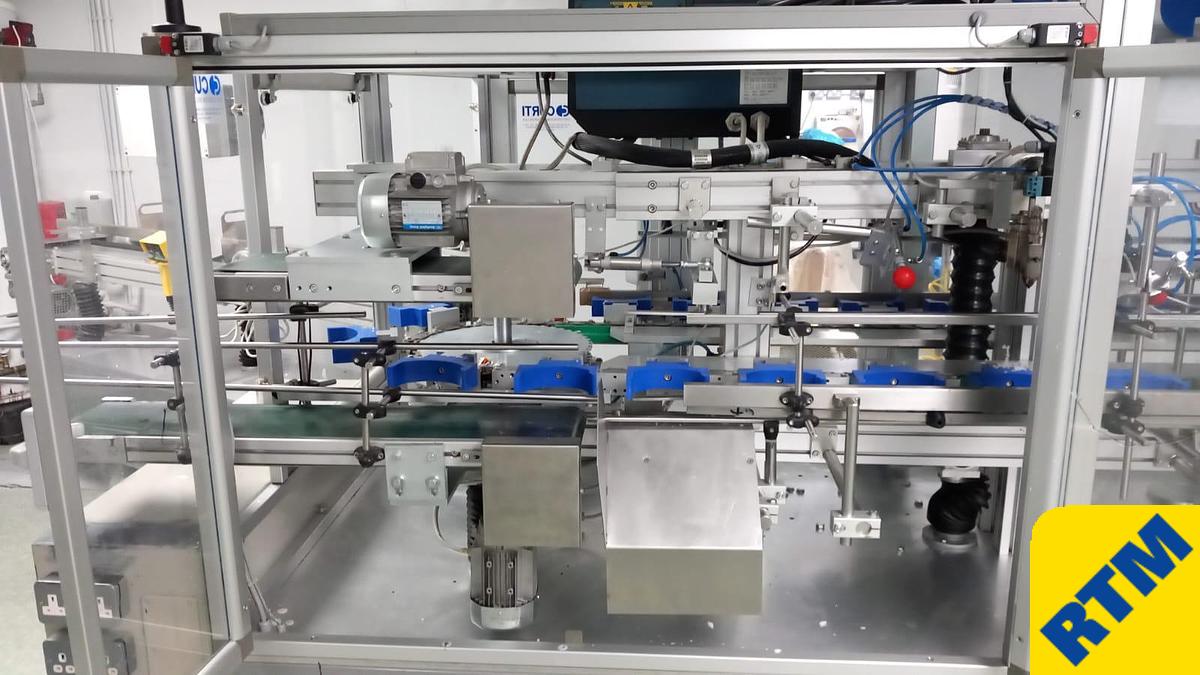

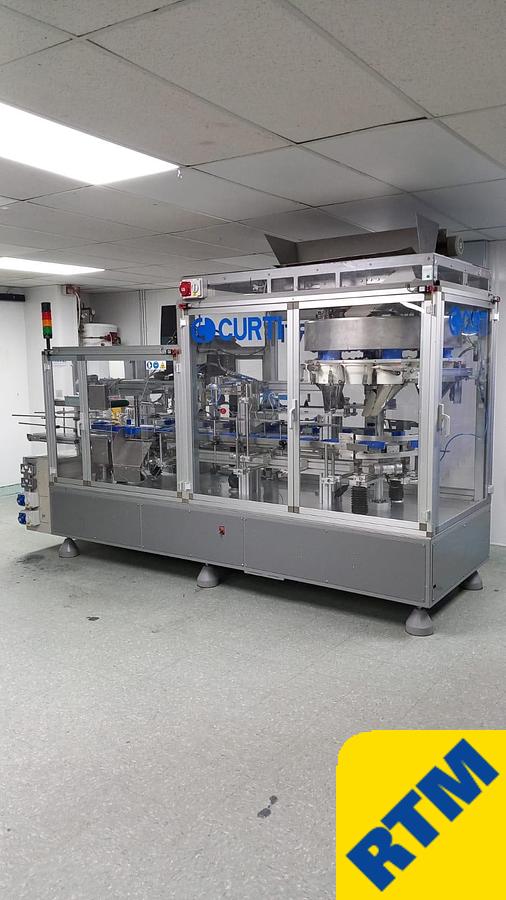

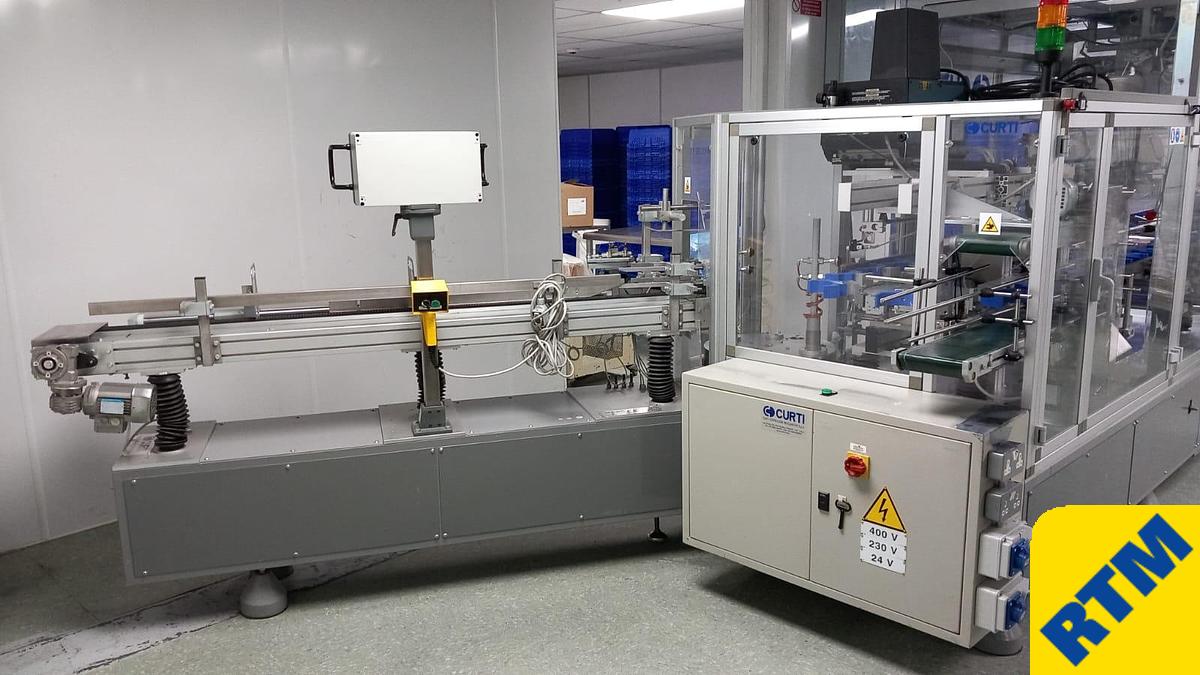

Vertical Cartonner

Item # 9370 - VERTICAL CARTONNER with VOLUMETRIC DOSING

Suitable for chocolate, confectionery, cereals, powders & flakes, pasta, rice, dried fruits, seeds etc.

Manufactured by CURTI

Was being used for packing chocolate/confectionery

Model 1001 DX. (XS 300 version)

Year 2006

Nominal speeds maximum 200 per minute – this machine was running at 110 per minute

Blank dimensions (a x b x h) (size adjustable on machine).

Min. 30 x 15 x 70 mm

Max. 70 x 40 x 150 mm

current cartons are crashlock bottom and glued top flaps.

comes with parts for a fliptop carton

Overall dimensions (mm): 5570 x 2715 x H1880

230-400 V3 phase+Neutral+Earth)/ 50Hz (standard)

10 kW
